Choosing a Format

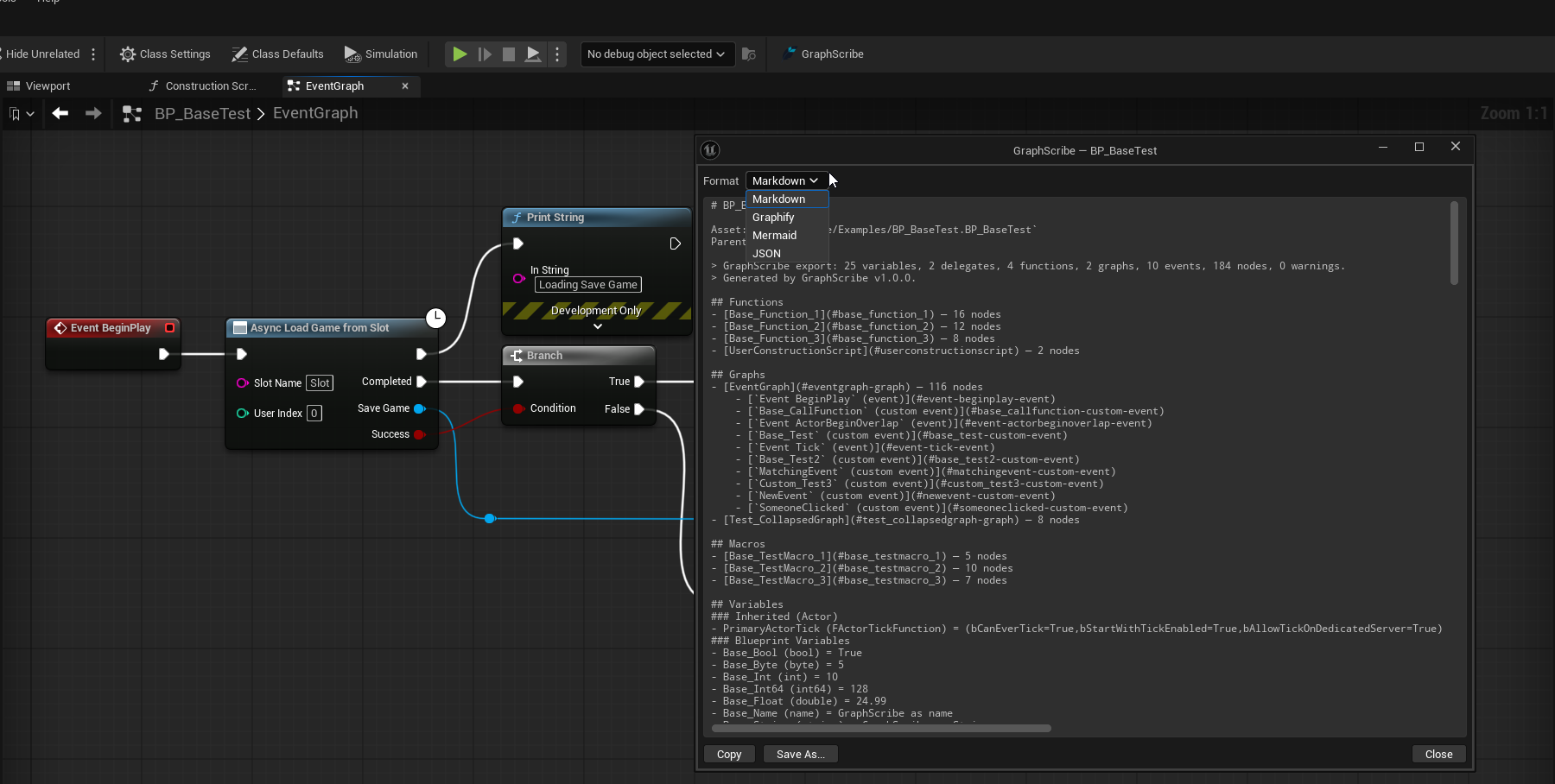

GraphScribe can export the same asset in four different formats. They each serve a different purpose. Pick the one that matches what you're trying to do. You choose the format in the export dialog's Format combo (you can set a default format).

Format	File extension	Best for	Readable by humans?	Readable by AI/tools?
Markdown	.md	AI agents, code review, documentation, PRs	Yes	Yes
Graphify	.graphify.json	Knowledge graphs and AI agents	Somewhat	Yes
Mermaid	.mmd	Diagrams that render on GitHub, GitLab, Notion	Yes (as a diagram)	Yes
JSON	.json	Custom tools and scripts	Not really	Yes

Markdown

The human-friendly option. Variables, functions, graphs, macros, delegates, class references, and widget trees become clean Markdown sections. This is the format you'll read the most. See Markdown Output.

Graphify

A knowledge graph format designed for AI and graph databases. Unlike the other formats, Graphify:

• gives every Blueprint, function, and class a stable ID (bp: / fn: / cls:),
• records links between assets (calls, defines, uses, plus per-asset contains),
• can merge every exported file into one project-wide graph (ProjectLinkage.graphify.json).

This is what lets AI answer "who calls this function?" across your whole project. See Graphify: AI-Ready Graphs.

Mermaid

A flowchart description that renders as a diagram anywhere Mermaid is supported. GitHub READMEs, GitLab, Notion, and more. Great for putting a visual of a Blueprint graph or widget hierarchy into a document. See Mermaid Diagrams.

JSON

A complete, structured dump of everything in the asset. Nodes, pins, edges, variables, class refs, widget tree, diagnostics, and more. Use this if you're writing your own tooling to process Blueprint data. It's verbose and not meant to be read by people. See JSON Output.

Same content in every format?

Almost. Every format exports the full asset, but some things are format-specific:

• Graphify filters out Kismet utility noise (Branch, Sequence, Get/Set nodes, Kismet*Library calls) so the graph keeps only gameplay linkage. Markdown/Mermaid/JSON keep the full node set.
• Selection exports contain only the selected nodes and omit variables, widget trees, and class references in every format.
• DataTables are never exported in any format.

Which one should I use?

• Writing docs or reviewing code → Markdown
• Feeding AI or a knowledge base → Graphify
• Showing a visual diagram → Mermaid
• Building a tool → JSON
